Ultimate Guide to Upgrading Your RC Car with XC-ESC E Series Brushless Motor and ESC for Race-Ready Performance
Want your RC car to run faster, smoother, and more reliably? Upgrading the motor and ESC is the way to go. High-quality electronics like the XC-ESC E series brushless motor and ESC can transform your car into a serious race machine. In this guide, we’ll walk through why these upgrades matter, how to pick the right parts, and step-by-step instructions to install everything with ease. Plus, you’ll learn how to customize your settings using their smart Bluetooth app.
Why Upgrade to a High-Performance Motor and ESC from XC-ESC?
Why Choose XC-ESC E Series Brushless Motors and Powerful ESCs?
Brushless motors like the 3300 KV XC-ESC E Series sensored model deliver more speed and last longer than traditional brushed motors. They’re more efficient and produce less heat. The 140-amp ESC supplies plenty of juice to handle high-power motors and tough racing conditions. This combo ensures your RC car is quick, responsive, and ready for demanding tracks.
How the XC-ESC E Series Boosts Your Racing
With these upgrades, expect faster acceleration, better throttle control, and improved handling on corners. They give your car a punch of power that turns simple races into exciting sprints. Data from similar setups shows speeds jumping significantly—your car can easily hit top speeds with quick response times.
Picking the Right Motor and ESC
Features to Look For in a Brushless Motor
- KV Rating: The 3300 KV rating shows how fast the motor spins per volt. Higher KV means more speed—perfect for racing. Lower KV Matched with Higher battery power can be great for bashing.
- Full Sensored Operation: Senses position for smooth power delivery and less stuttering at low speeds.
- Build Quality: Features like high-grade bearings, waterproofing (IP67), and anti-spark tech make these motors durable and reliable.
Choosing a Compatible ESC
- Battery Compatibility: Look for an ESC that supports your required battery power.
- Waterproof & Dustproof: IP67-rated protection keeps electronics safe from dirt and water.
- Bluetooth Capable: Connects wirelessly for easy tuning without extra tools.
- High Current Capacity: A 140-amp ESC can deliver steady power without overheating or shutting down.
Other Must-Have Features
- Dedicated BEC Circuit: Powers your servos separately for sharper control.
- Turbo Timing & Adjustable Punch: Fine-tune how much power the motor produces.
- Firmware Updates: Stay updated with the latest features and stability improvements.
How to Install Your New XC-ESC E Series RC Motor and ESC
Tools Needed
- Screwdrivers
- Double-sided tape or high-quality mounting tape
- Cable ties
- Patience (you’ll need it!)
Preparing Your Car
First, carefully remove the old motor and ESC. Check if your chassis supports a six-hole mounting pattern, common with quality brushless motors. Confirm gear mesh between the pinion and spur gear, making sure they aren’t too tight or loose.

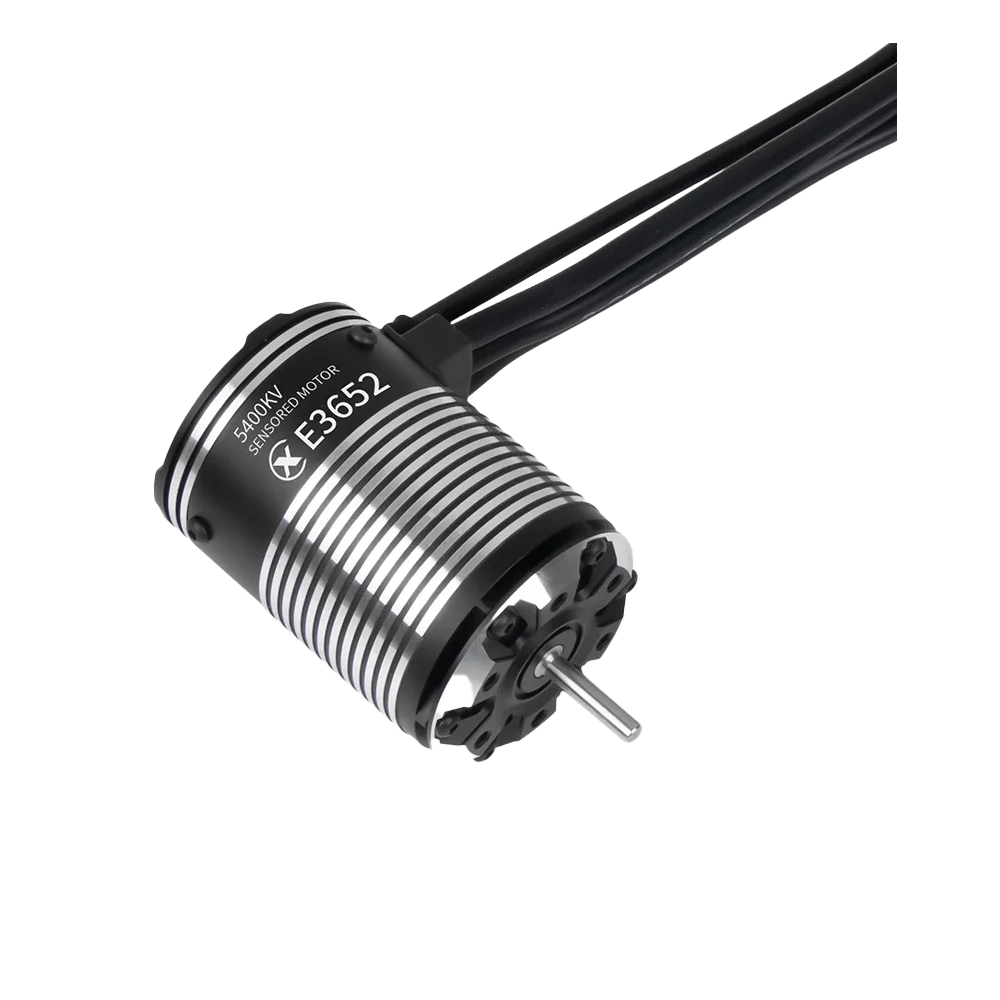

Mounting the Motor
- Align the motor with the mounting holes.
- Attach the motor using screws, leaving a tiny gap for smooth operation.
- Adjust the motor position until there’s just a little play in the gear mesh—no more, no less.
- Tighten screws securely, but avoid over-tightening which can strip the holes.

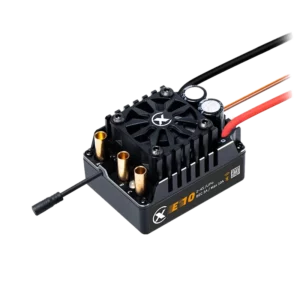

Installing the ESC
- Connect the motor wires — color-coded (A, B, C) — to the ESC, matching the labels.
- Mount the ESC with high-bond tape on a flat spot away from moving parts.
- Connect the sensor wire — there are arrows to match up — from the motor to the ESC.
- Plug the power wires into your receiver and other components like transponders or servos.
- Attach the battery, ensuring wires stay clear of wheels and moving parts.
Connecting and Testing the XC-ESC E Series Motor and ESC
Switch on the receiver and then the ESC. If all is wired properly, your motor should spin smoothly. It might jump or dance around at first—this is normal until you set everything up.
Customizing Settings Using the XC-ESC E Series XC Link Bluetooth App
Getting Started with the App
Download the XC Link U app directly from the XC website. Sometimes the default language is Chinese, so switch to English in the settings for easy navigation. Once installed:
- Power on the ESC.
- Enable Bluetooth on your device.
- Scan for devices and select your ESC.
- Connect and dive into the settings menu.
Adjusting Performance Parameters
- Running Mode: Choose between Forward/Brake/Reverse or just Forward/Brake—racing drivers prefer the latter for safety.
- LiPo Cell Count: Set to match your batteries (2S, 3S, 4S).
- BEC Voltage: Adjust to 6V or 7.4V based on your servo’s needs.
- Cutoff Voltage: Protect your battery by setting the voltage where the ESC cuts power.
- Power and Response: Fine-tune punch and throttle response to suit your driving style.
- Drag Brake & Turbo Timing: Increase drag brake for better control, or push turbo timing to boost speed—great for straightaways.
Firmware and Data Monitoring of the XC-ESC E Series
Your ESC can update its firmware automatically through the app, keeping features fresh and stable. You can also record live data like speed, throttle, and reaction times. This helps tweak your setup for peak performance.
Tips for Maintaining Your RC Car
- Regularly check gear mesh and wiring.
- Keep firmware updated for the latest features.
- Use good-quality lubricants for gears and bearings.
- Experiment with different settings to find your perfect balance of speed and control.
Conclusion
Upgrading your RC car with XC-ESC’s brushless motor and ESC is a game-changer. They unlock more speed, greater responsiveness, and reliable operation. Thanks to the Bluetooth app, tuning becomes straightforward and allows you to customize your car exactly how you want. Whether you race or just enjoy bashing, these upgrades turn your hobby into a high-performance adventure. Now, hit the track with confidence and watch your RC car perform like a champion.
